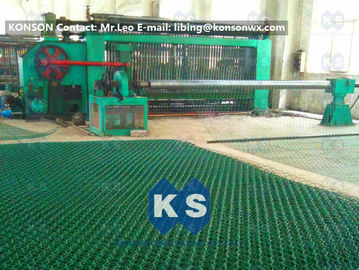

High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m

گواهی
کیفیت خوب ماشین مشب گابین برای فروش
We got three machines form KONSON,the machine is good quality and they provide service of installation and debugging.

—— Hassan Fehmi from Turkey

I imported 80,000 sets gabion boxes.The products and marketing team are both excellent.The gabion got a good mark in quality test.

—— Soriane Morchedi from Algeria

چت IM آنلاین در حال حاضر

High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m

چین High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m تامین کننده

تصویر بزرگ :  High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m

جزئیات محصول:

Place of Origin: Jiangsu, China
نام تجاری: Konson
گواهی: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS6080-4.0

پرداخت:

Minimum Order Quantity: 1 Set
قیمت: Discuss in mail
Packaging Details: One 40' Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
توضیحات محصول جزئیات

High Corrosion Hexagonal Wire Netting Machine CE Certification For Making Stone Cage 2x1x1m





1. Double twist & Five twist gabion machine

1.CE certification

2.Max width: 4300mm

3.Wire diameter: 2.0-4.0mm

4.Patented invention: Five twist hexagonal wire mesh

The KS series hexagonal wire netting machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine.  Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.









High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m







2. Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm



3. New Hexagonal Wire Netting Machine

1. Model: KS100120-4.0

2. Mesh size: 100x120mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm



High Corrosion Hexagonal Wire Netting Machine For Making Stone Cage 2x1x1m
